Refractory Fire Bricks & Shapes
Active Refractories are engineered using carefully selected fractions of high-purity refractory grog, plastic fire clays, and non-plastic clays. These raw materials are precisely proportioned and blended in counter-current mixers to ensure complete homogeneity. The thoroughly mixed material is then shaped using high-capacity hydraulic presses to achieve the required dimensions and geometry. Finally, the pressed forms are fired in advanced coal-fired tunnel kilns at controlled temperatures ranging from 1300°C to 1450°C, ensuring exceptional strength, density, and thermal stability.
- IS:8
- 30%
- 40%
- 50%
- 60%
| FIRE CLAY BRICKS & HIGH ALUMINA BRICKS | ||||||||
|---|---|---|---|---|---|---|---|---|
|
Product & Brand Name |
AL2O3 % |
FE2O3 % |
A.P. % |
B.D. (Gm/ccs) |
C.C.S. (Kgf/Cm²) |
P.C.E. (°C) |
R.U.L. (Ta°C) |
P.L.C. % |
| Min. | Min. | Min. | Min. | Min. | Min. | Min. | Max. | |
| ACTIVE -30 | 30 | 2.0 | 25 | 1.9 | 250 | 31 | 1350 | + 1.5 at 1350°C/2 Hrs. |
| ACTIVE -40 | 40 | 2.5 | 24 | 2.1 | 350 | 32 | 1400 | + 1.0 at 1450°C/2 Hrs. |
| ACTIVE -50 | 50 | 2.75 | 23 | 2.3 | 400 | 32.5 | 1430 | + 1.5 at 1450°C/2 Hrs. |
| ACTIVE -60 | 60 | 3.0 | 23 | 2.5 | 430 | 34 | 1450 | + 1.5 at 1500°C/2 Hrs. |

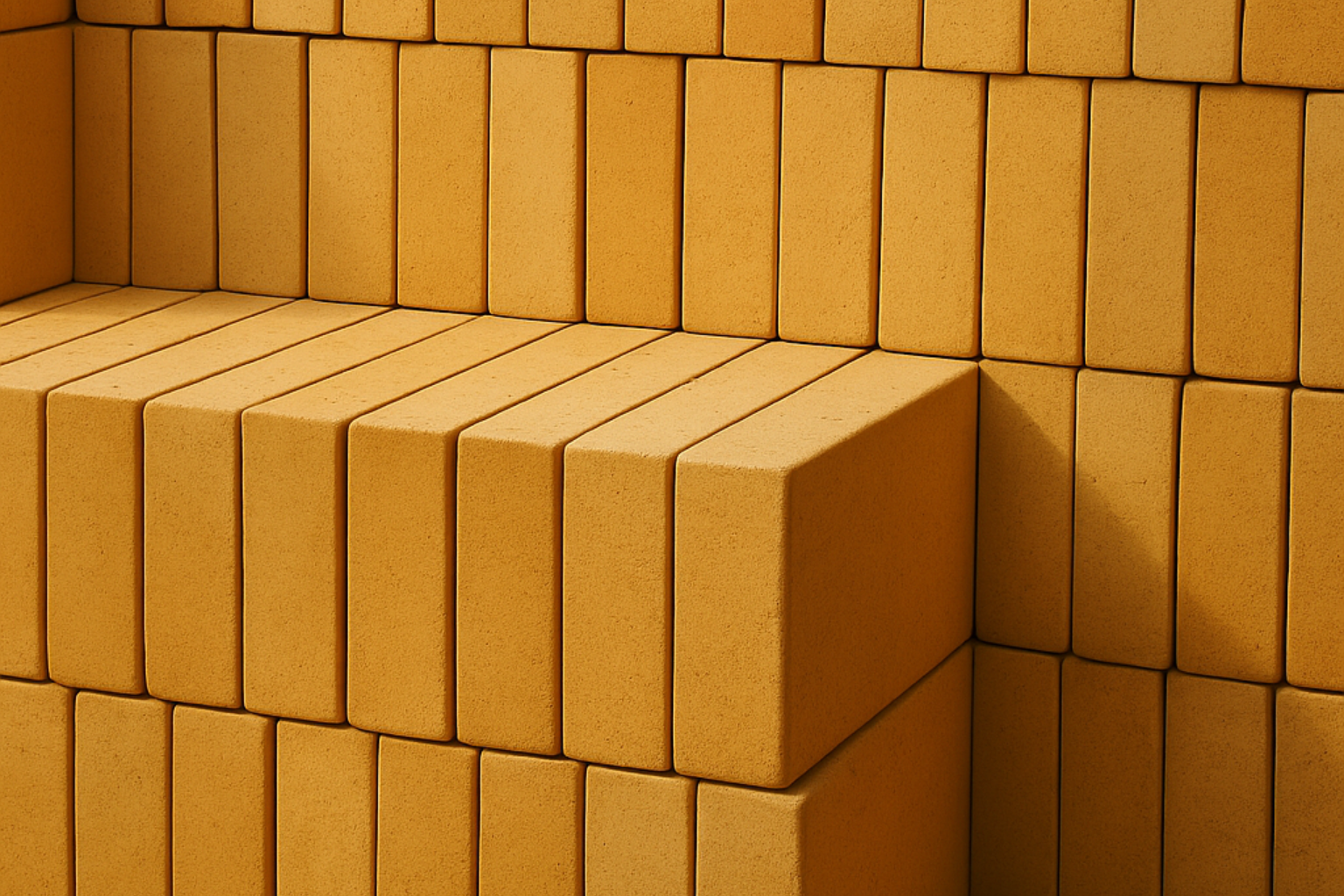

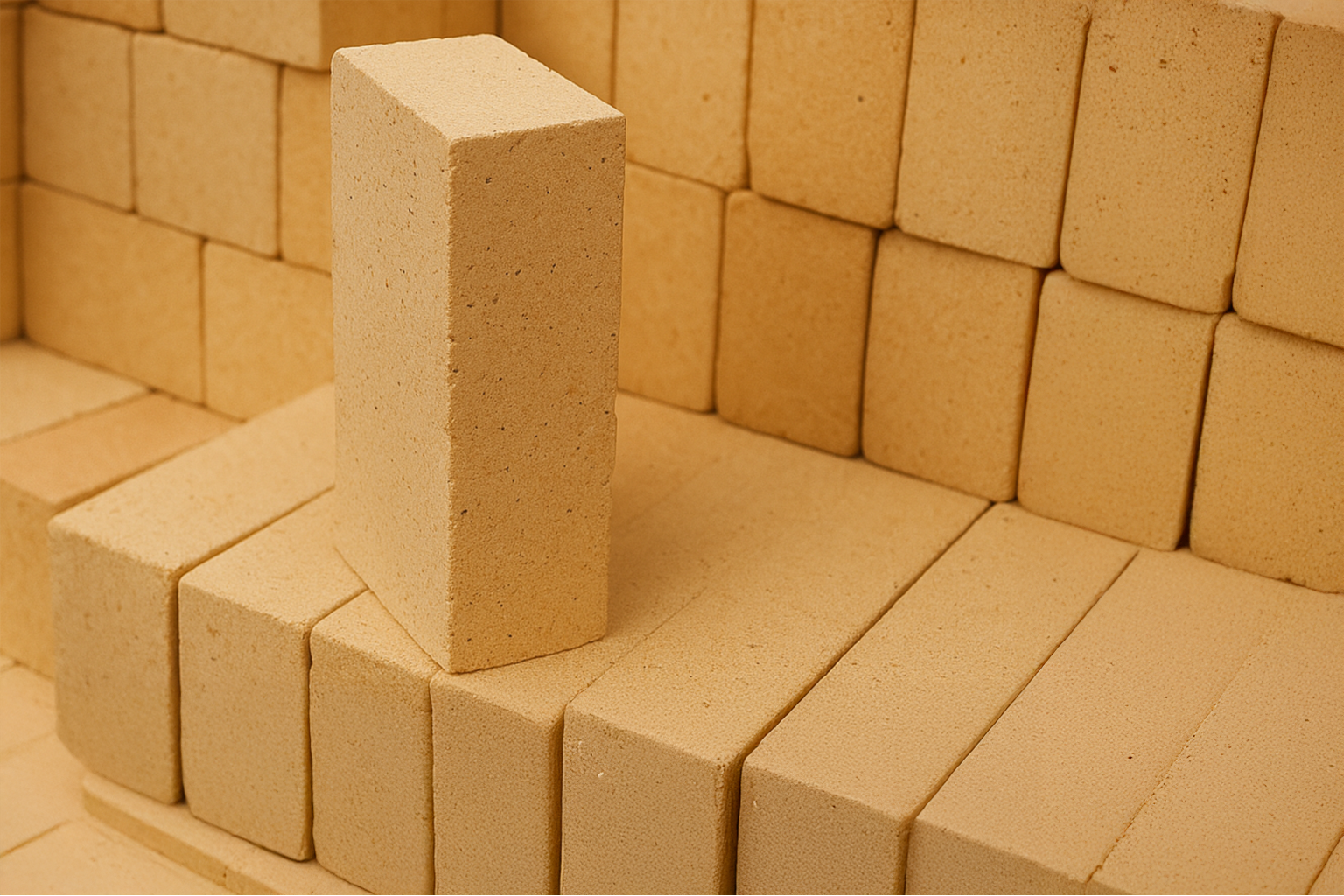

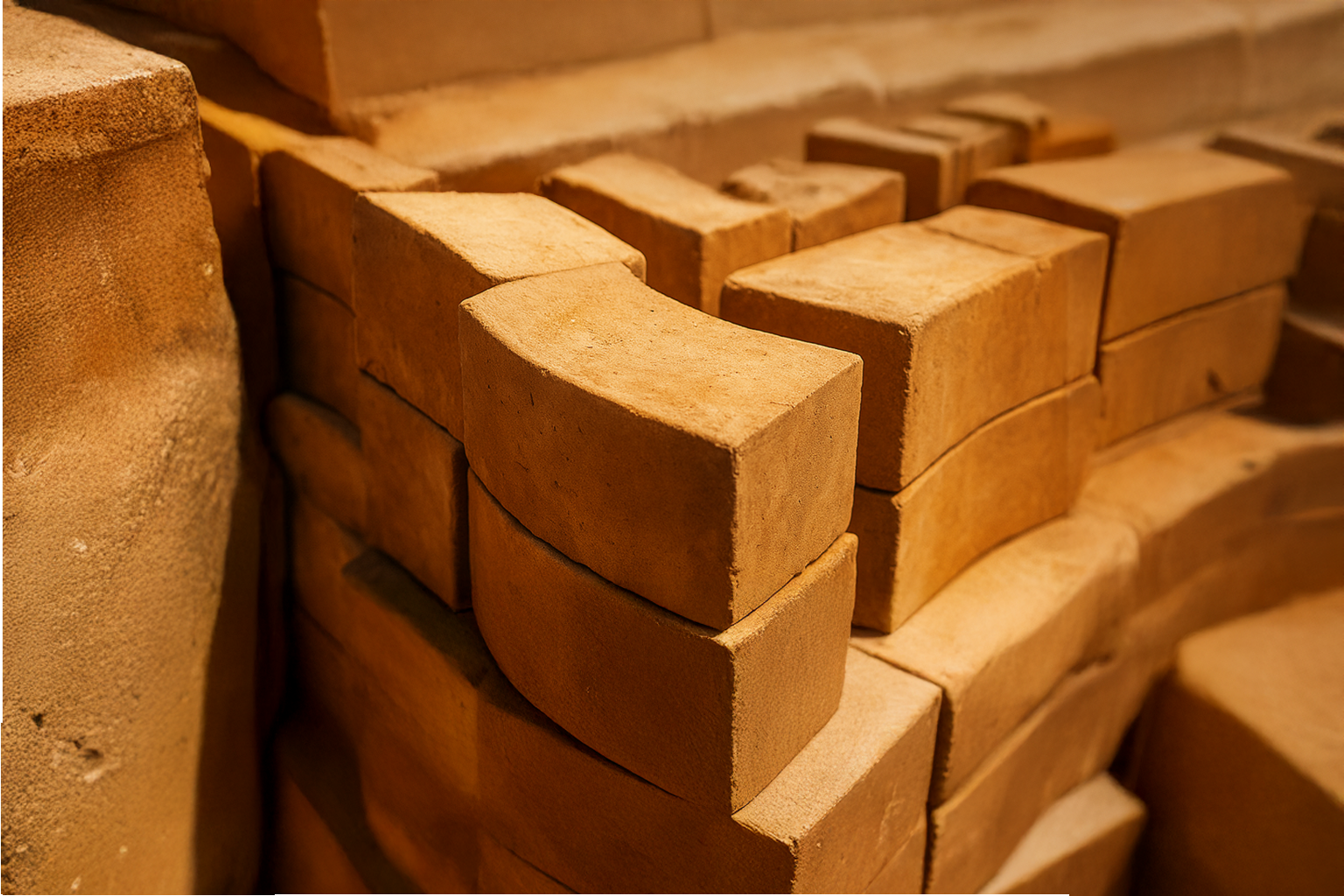

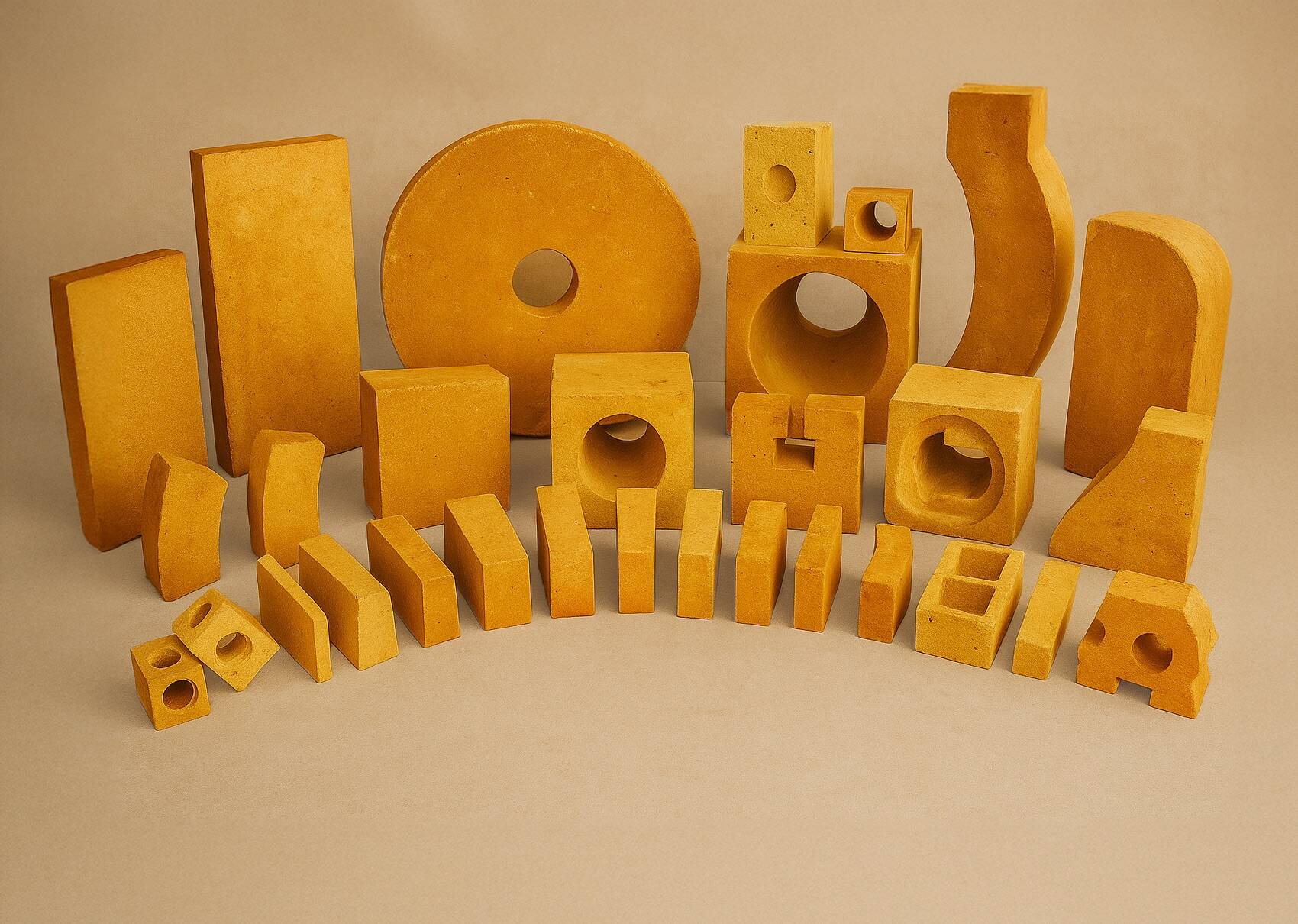

fire clay Bricks

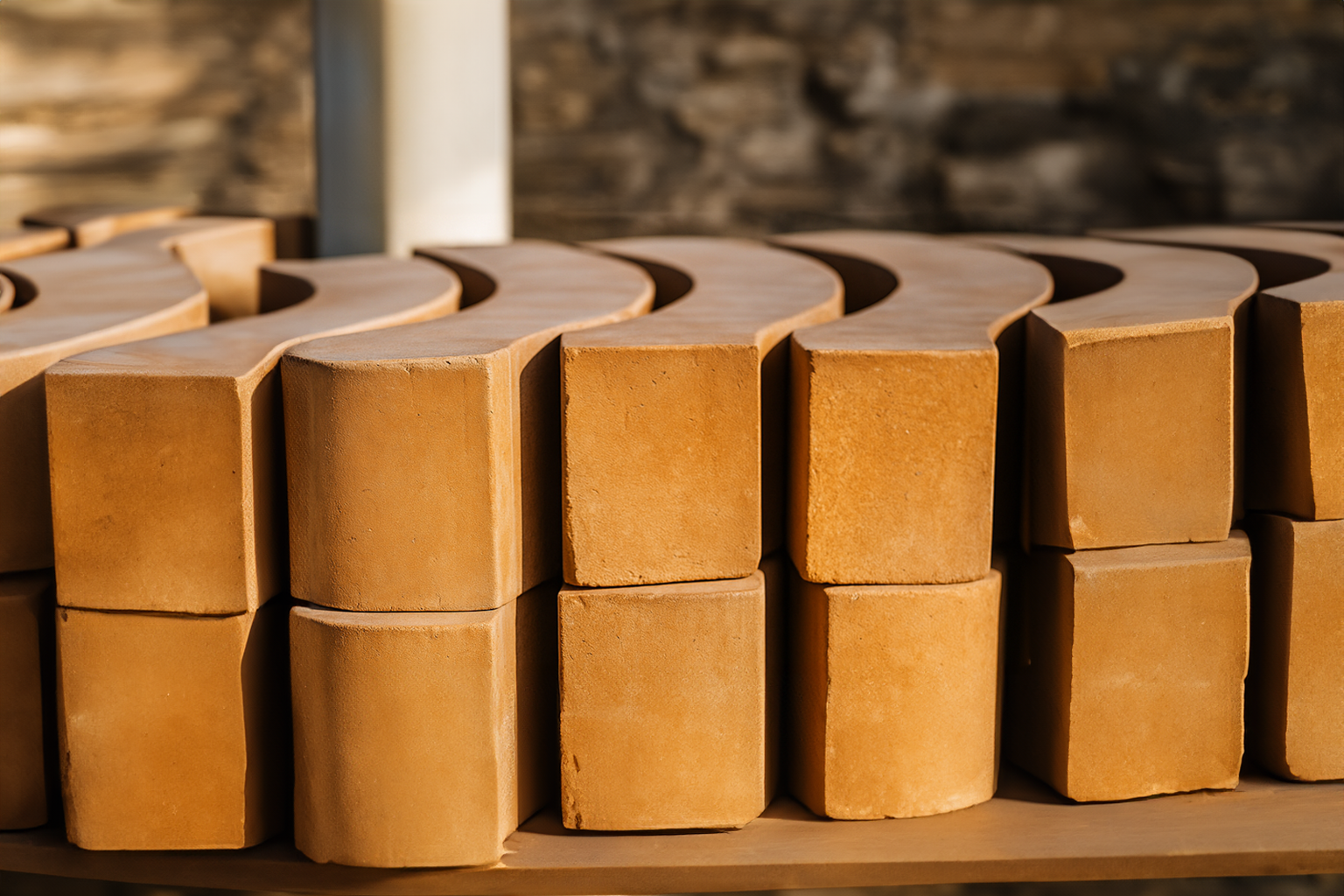

Cupola Bricks
Slab (Tiles)

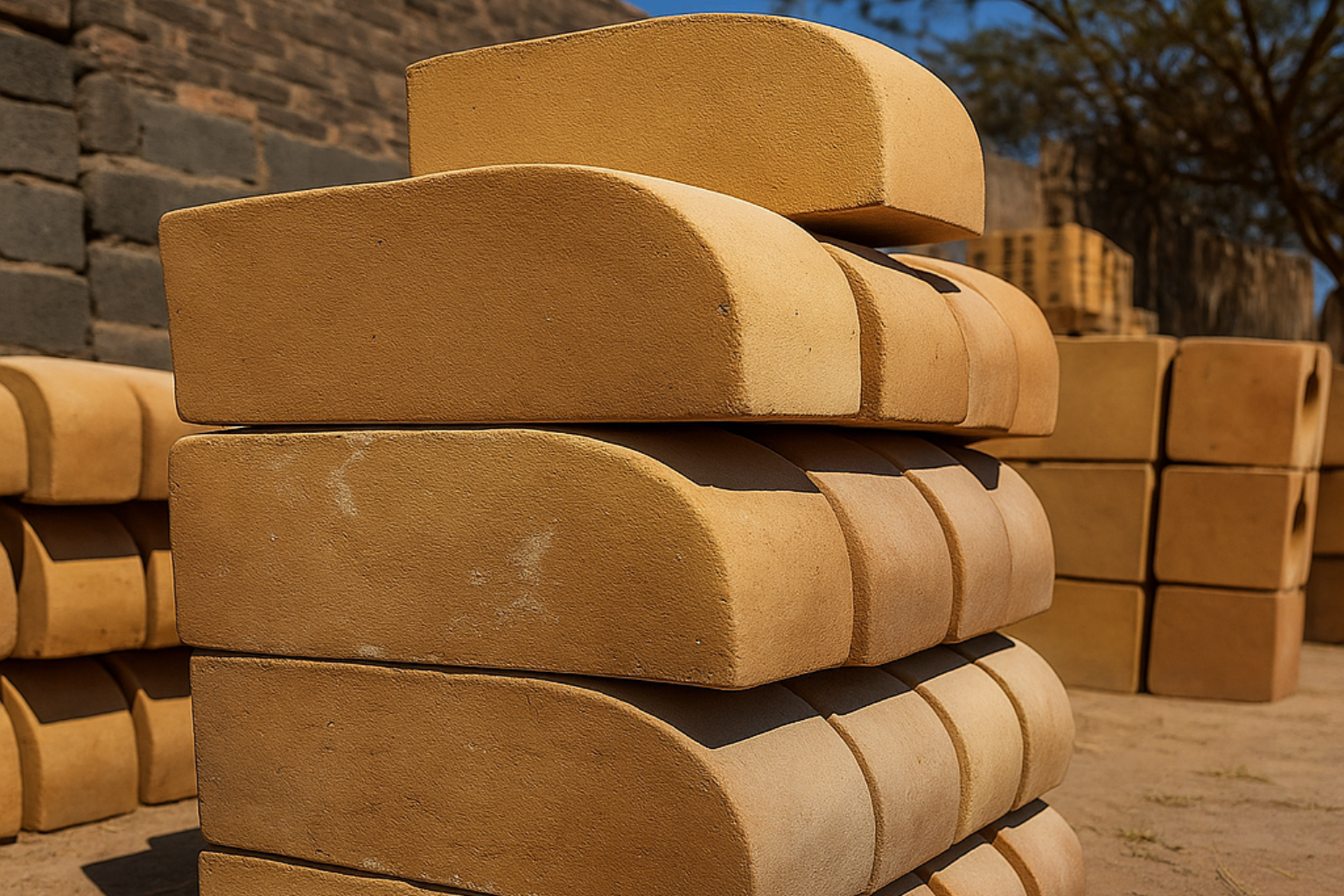

Half Round

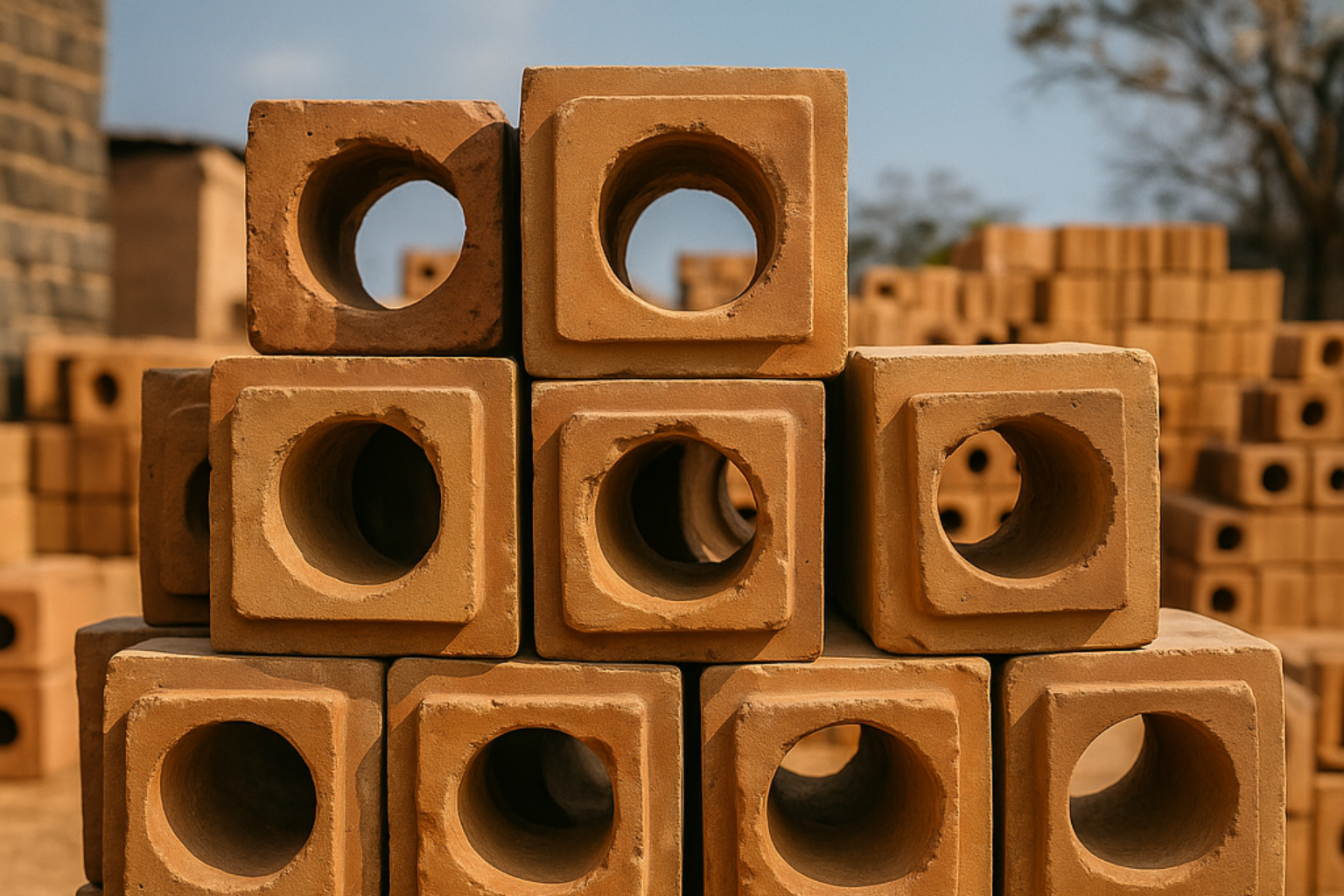

Burner Block

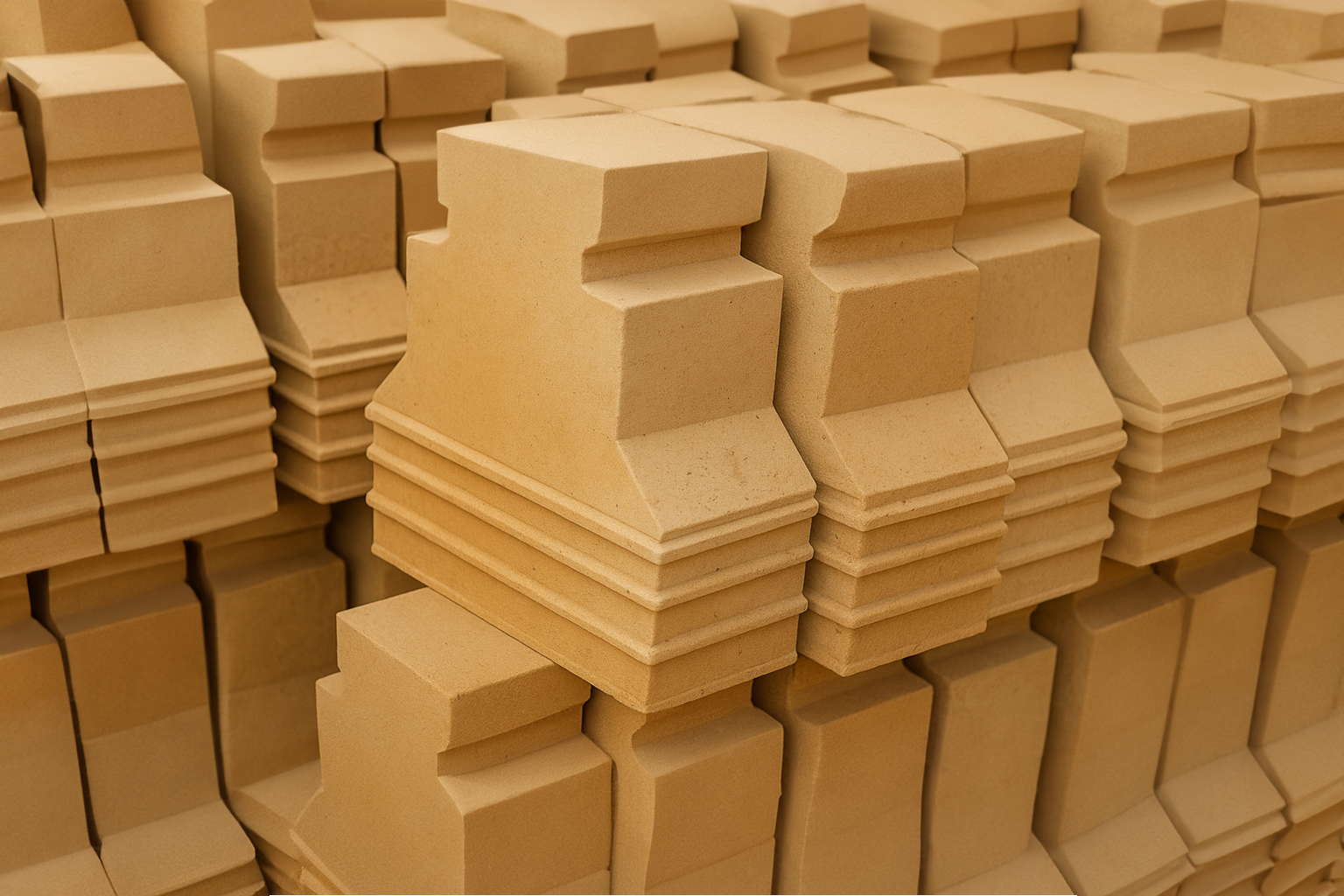

Arch Blocks

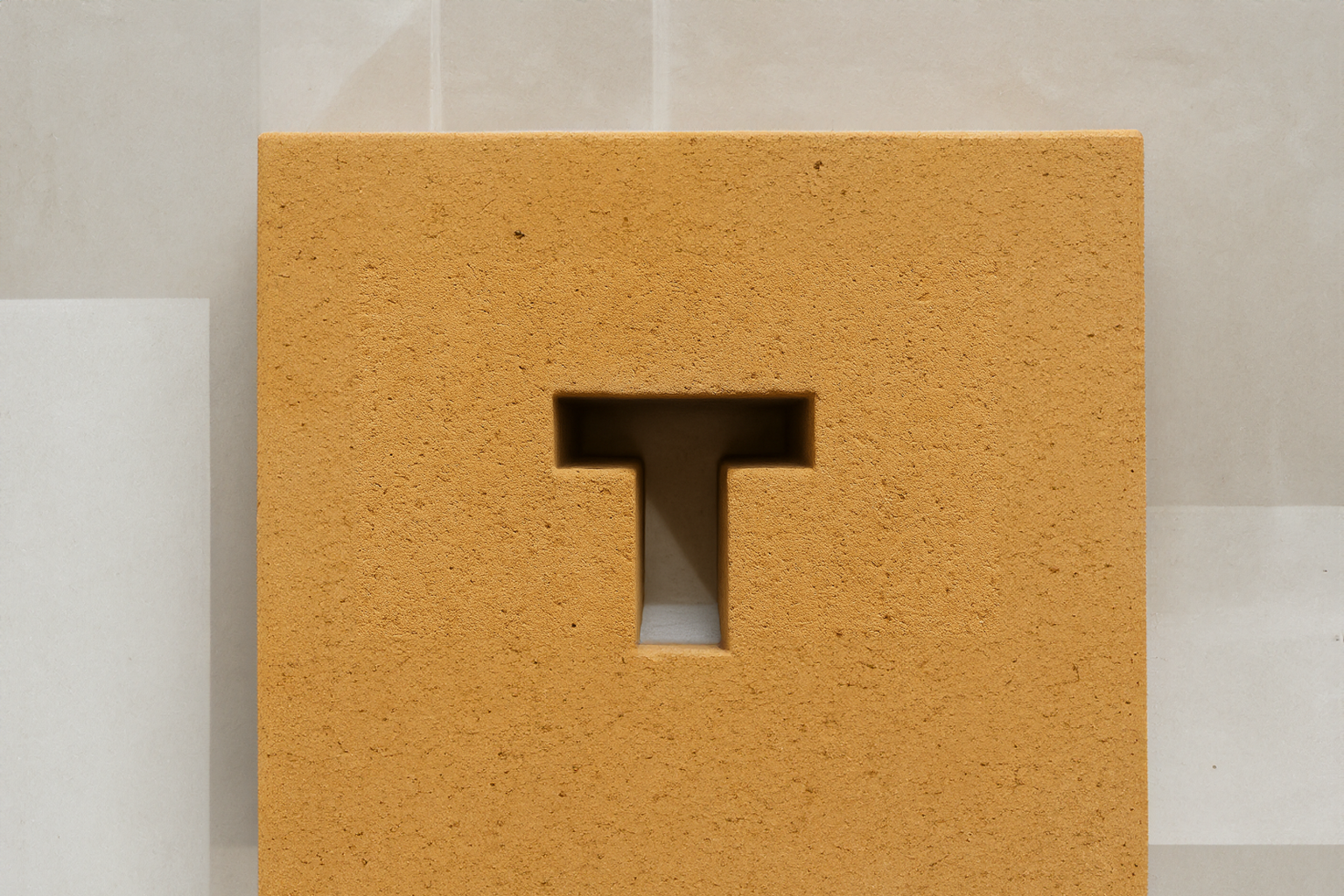

T-Bricks

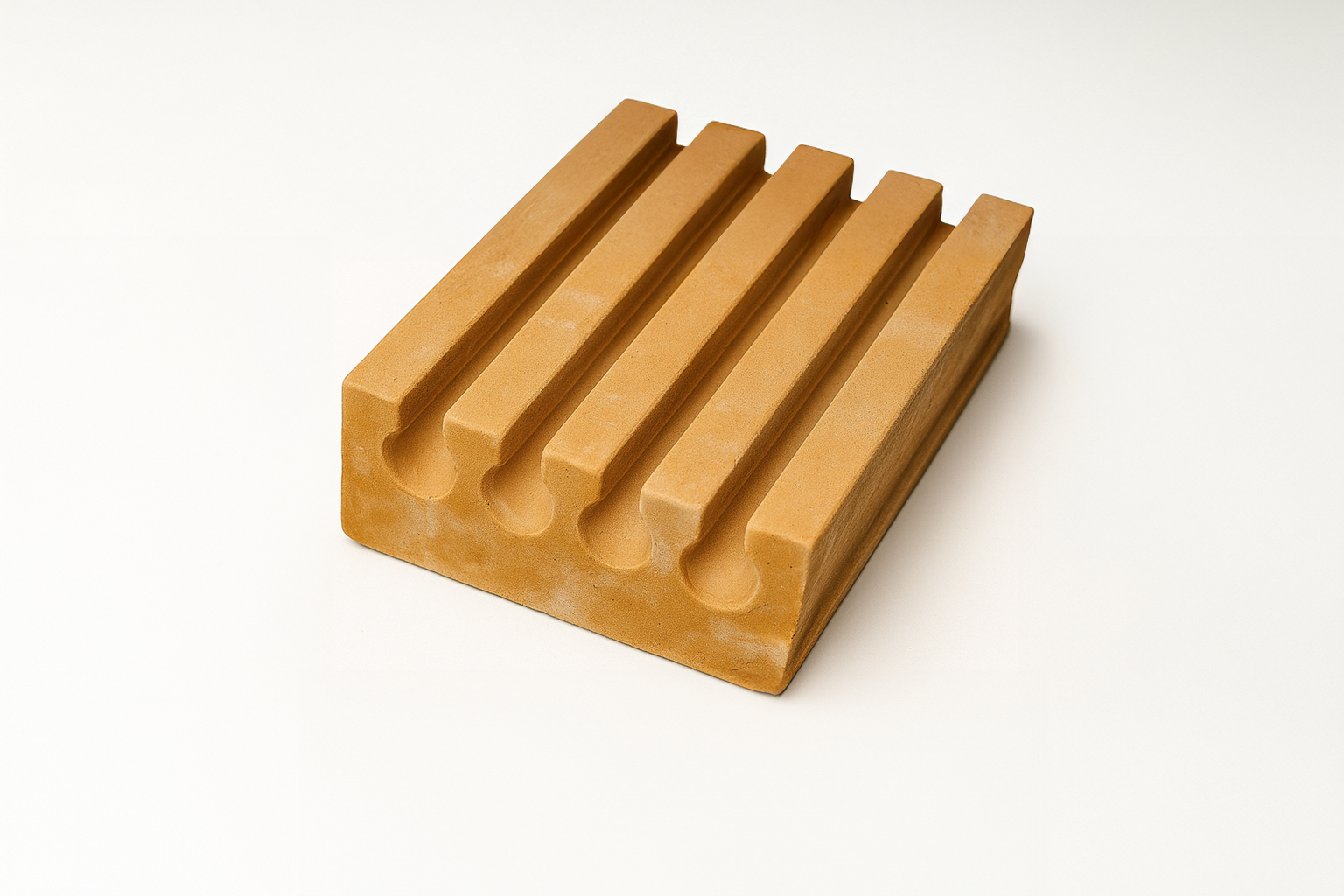

Element Bricks
